Performance of Exterior Windows and Doors , Curtain Walls Impacted by Windborne Debris In Windstorm Testing Machine
Product Overview:
This device is a kind of performance testing equipment which is designed and developed according to ASTM E1886-2005 ASTM E1996-2008, a new standard, "Classification and testing method for the impact resistance of building curtain walls, windows and doors to wind carrying debris", which is designed and developed in accordance with the foreign standards such as ASTM E1886-2005, etc. The test objects are limited to the building curtain walls, outer doors and windows and the test pieces of storm protection devices, and do not involve the connection between building curtain walls, outer doors and windows and storm protection devices and other structures. The device is simple in design, convenient in assembly, adjustable in pressure, adjustable in emission height and easy to operate in experiments.
Standards:
ASTM E1886-2005
ASTM E1996-2008
Parameters:
| Ambient temperature | -10 ºC ~ 50 ºC |
| Working pressure of air gun | 0.4 -0.8 Mpa |
| Steel ball | mass 2 g ±0.1 g, diameter 8 mm |
| Speed | 39.7 m / s |
| Rated voltage of solenoid valve | AC 220 V |
Product Characteristics:

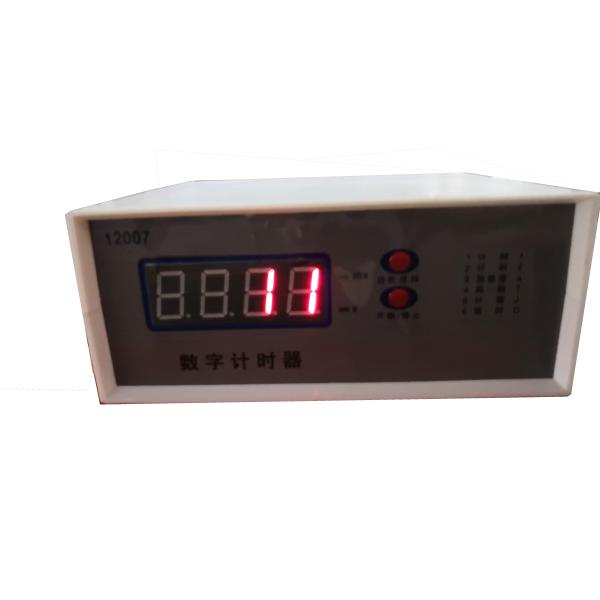

The device uses two photoelectric sensors of the same model and records the time of the emitter passing through the two sensors through an electronic timer. The response frequency of the electronic chronograph is not less than 10 kHz and the reaction time is not more than 0.15 Ms. The velocity of the emitter is the distance between the two photoelectric sensors divided by the calculated time of the electronic chronograph.
About daxian company:
DAXIAN's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, LED, photoelectricity, mobile, plasticand rubber, telecommunication, chemical industry, aerospace, building material and product, wire and cable,textile and fabrix, etc. All DAXIAN testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.
Welcome to visit our factory for sightseeing!
